Applications
- Residential (homes, apartments)
- Light commercial (offices, guesthouses)
- Multi-unit installations
Overview

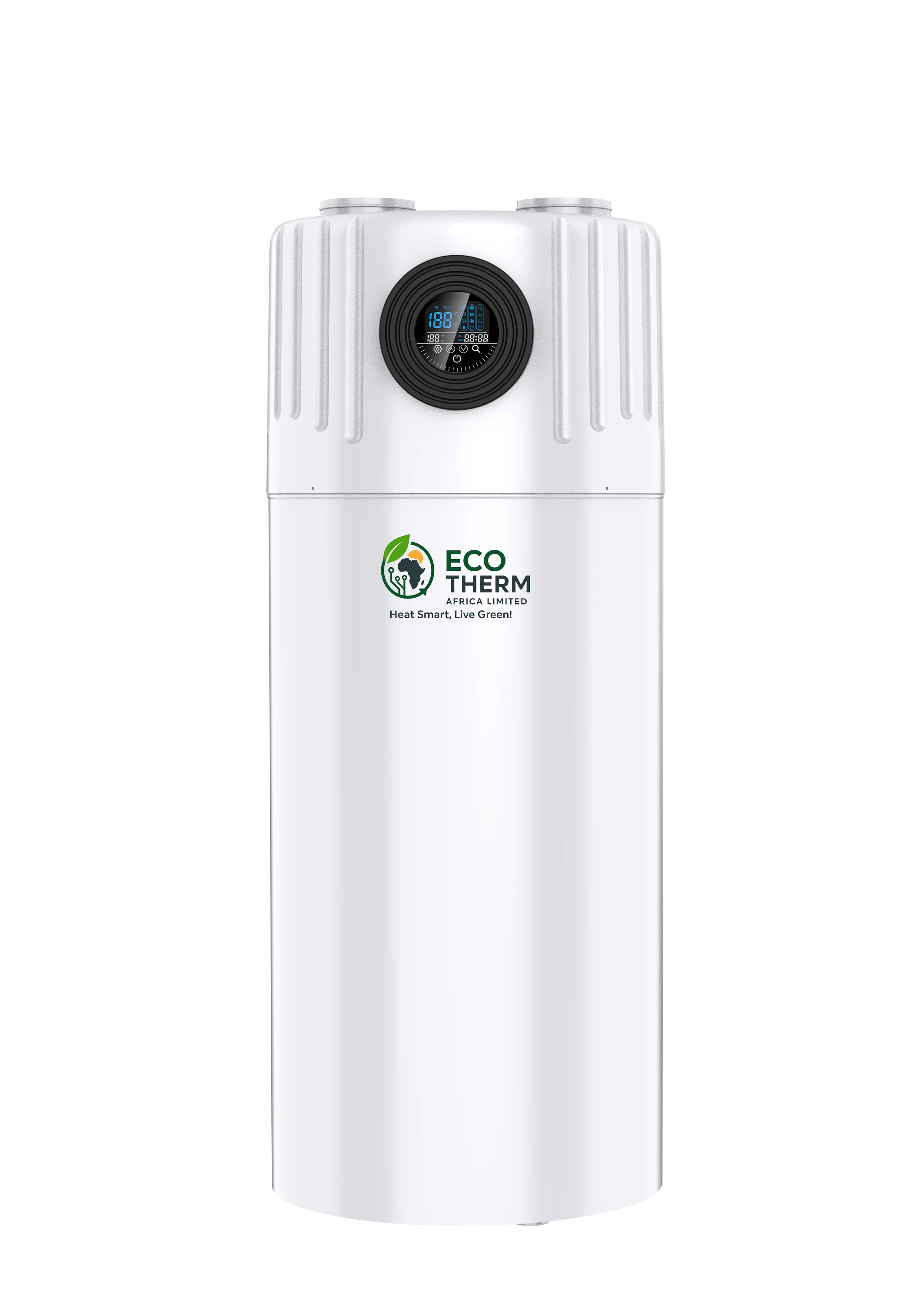

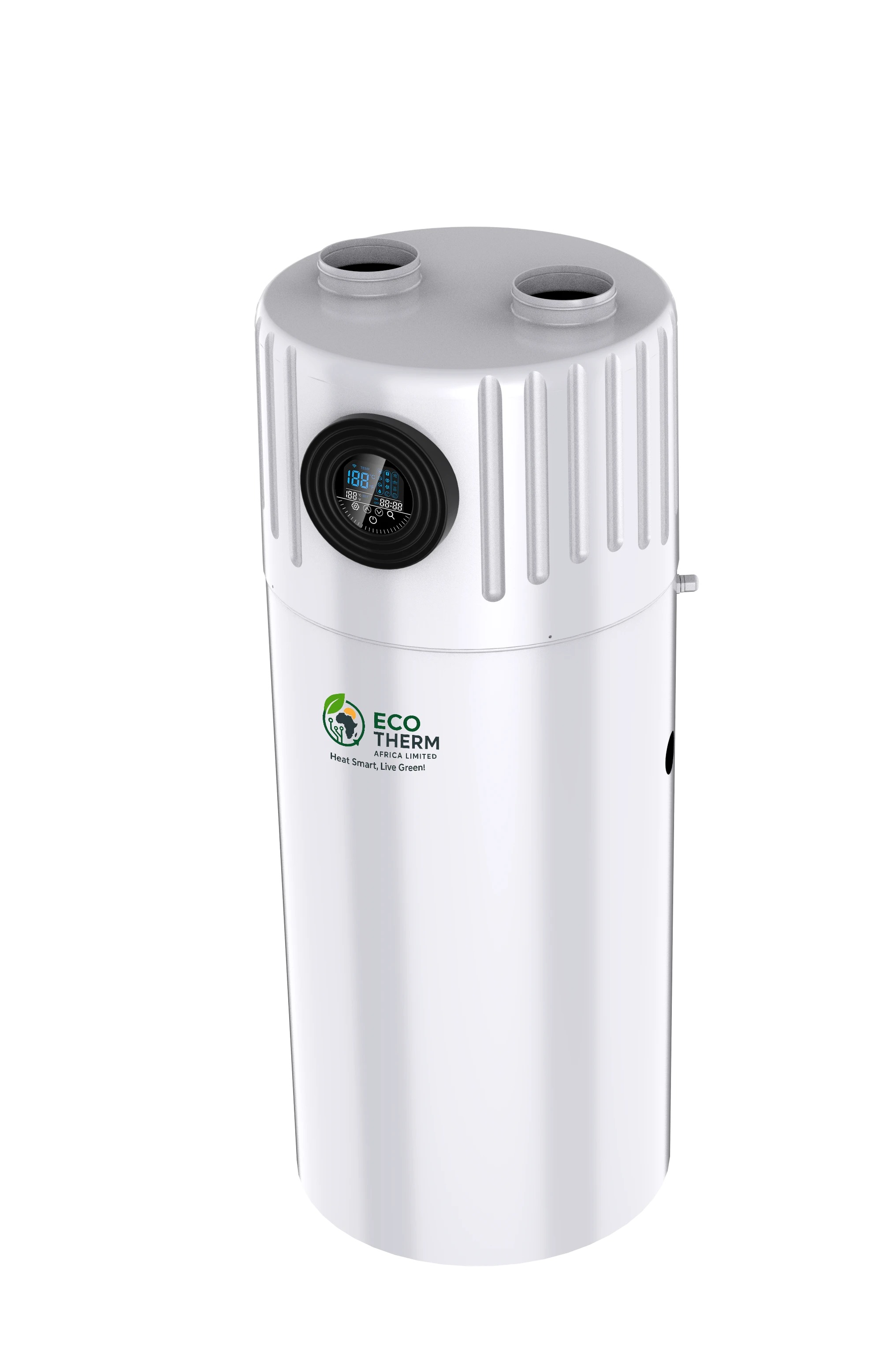

The R290 All-in-One Heat Pump combines a high-efficiency heat pump and integrated hot-water tank into a sleek, space-saving indoor unit. Designed for residential and light commercial applications, it leverages R290 natural refrigerant for extremely low environmental impact. Advanced operation is enabled via the built-in controller, with optional Wi-Fi/cloud connectivity for remote monitoring and intelligent scheduling.
Refrigerant: R290 (natural refrigerant, very low GWP)
Max water temp: 75°C
Energy saving: Up to 80%
Noise (typical): As low as 40 dB(A) (typical)
Built-in heater: Optional 1.5 kW built-in electric heater
Operating ambient: -5°C ~ 43°C (typical; see model nameplate for details)
Available Tank Sizes
80 L · 100 L · 150 L · 200 L · 250 L · 300 L
Summary Technical Specifications (representative)
Representative values from the R290 AIO model family. For complete model-level tables, refer to the catalog PDF.
| Model / Tank (L) | Rated Power (W) | Heating Cap (kW) | COP (typ) | Noise dB(A) | Max Water Temp |
|---|---|---|---|---|---|
| PW005-KZJRS / 80 L | 245 W | 0.95–1.2 kW (representative) | ≈3.88 | 43 dB(A) | 75°C |
| PW005-KZJRS / 150 L | 431 W | ~1.8–2.4 kW | ≈4.18 | ~43–50 dB(A) | 75°C |
| PW005-KZJRS / 200–300 L | ~420–431 W (model dependent) | ~2.0–3.0 kW | ≈4.2–4.28 | ~43–50 dB(A) | 75°C |
Features & Highlights
- Smart touchscreen controller with timing, defrost, and fault-diagnosis functions.
- Built-in Wilo water pump and optional 1.5 kW electric heater.
- High-efficiency heat exchanger with anti-corrosion coating; enamel or stainless inner tank options.
- Multiple installation options: floor-stand or wall-mounted.
- Built-in Wi-Fi module and cloud connectivity for remote monitoring.
