Applications
- Residential pools 15–130 m³
Overview

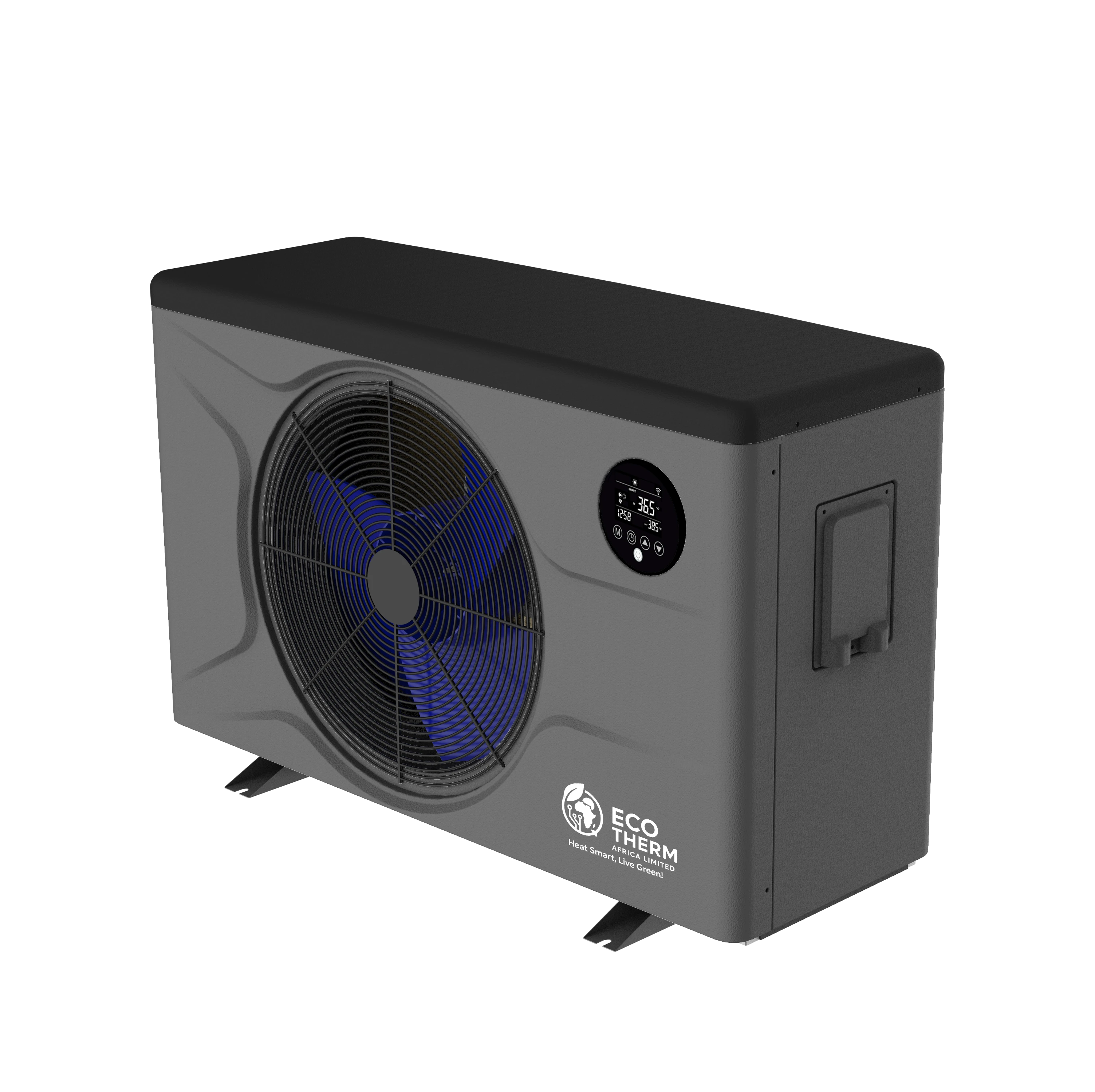

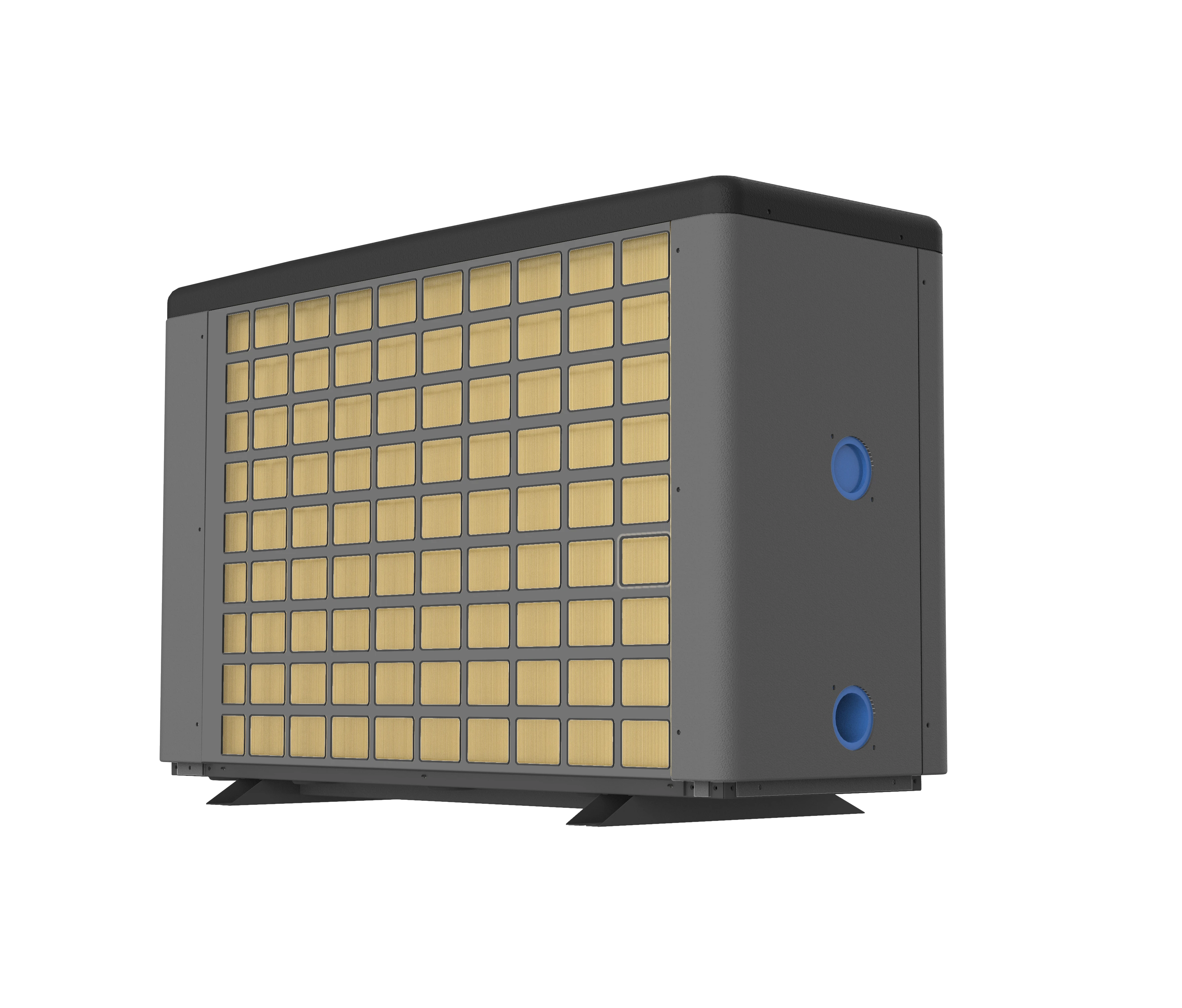

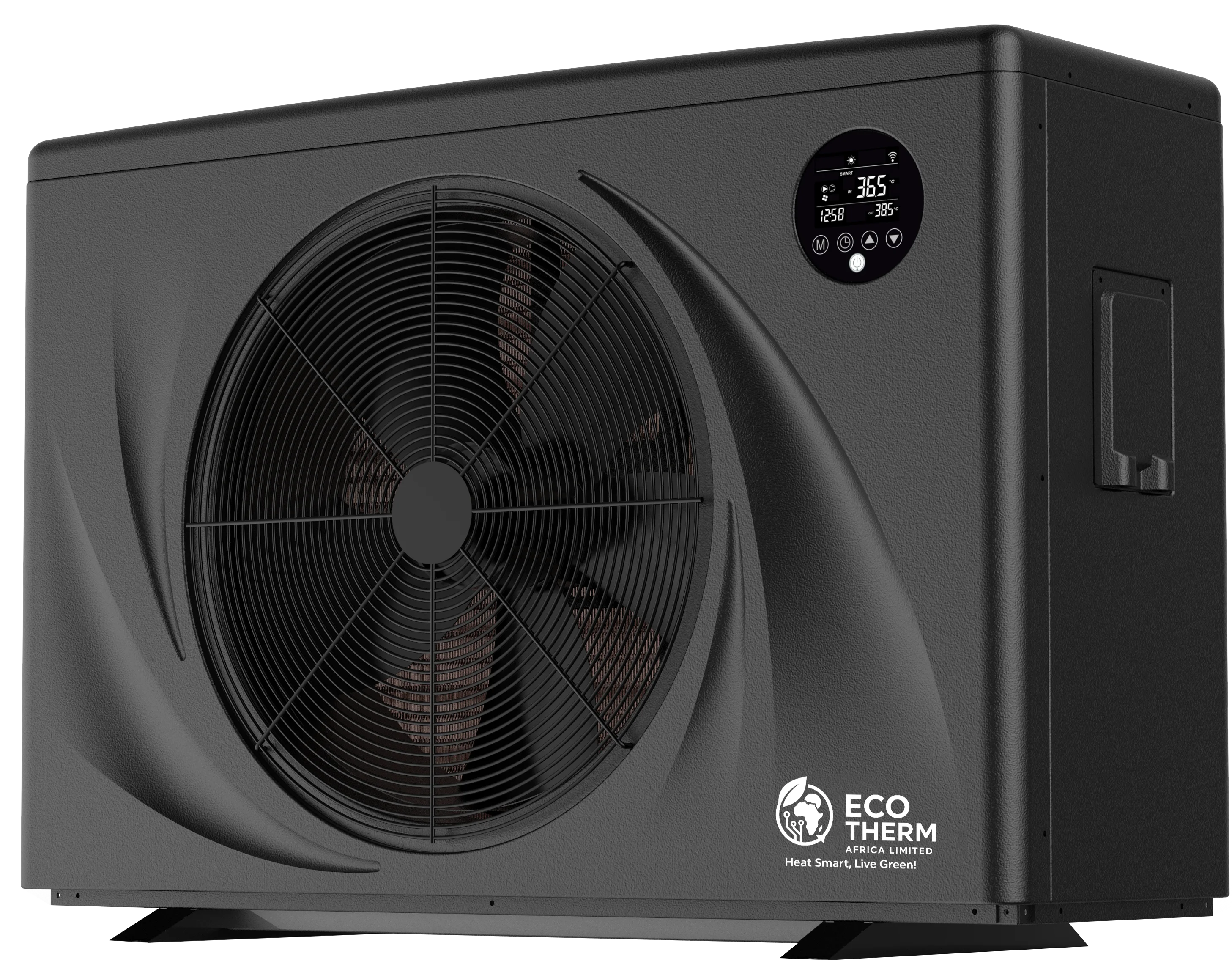

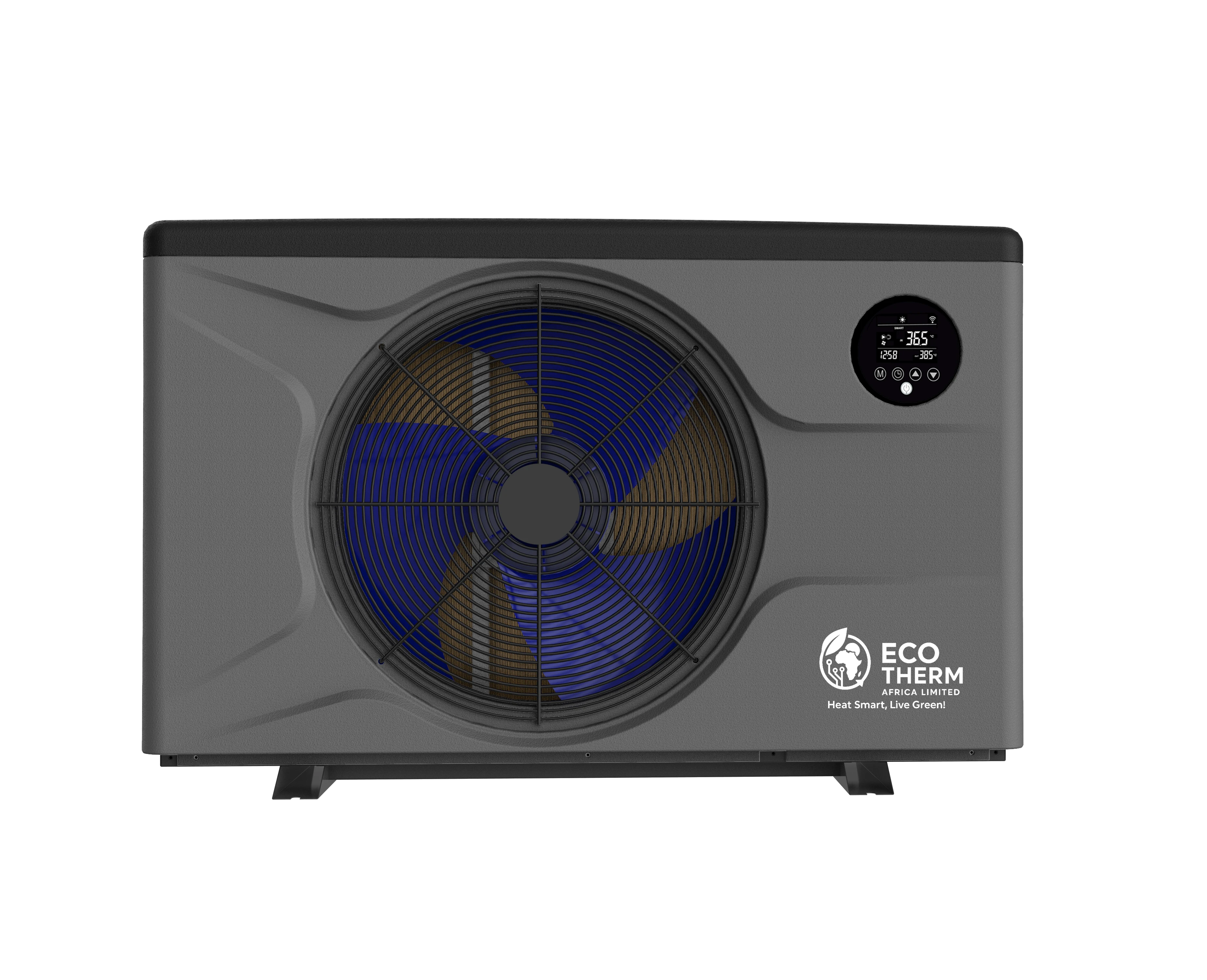

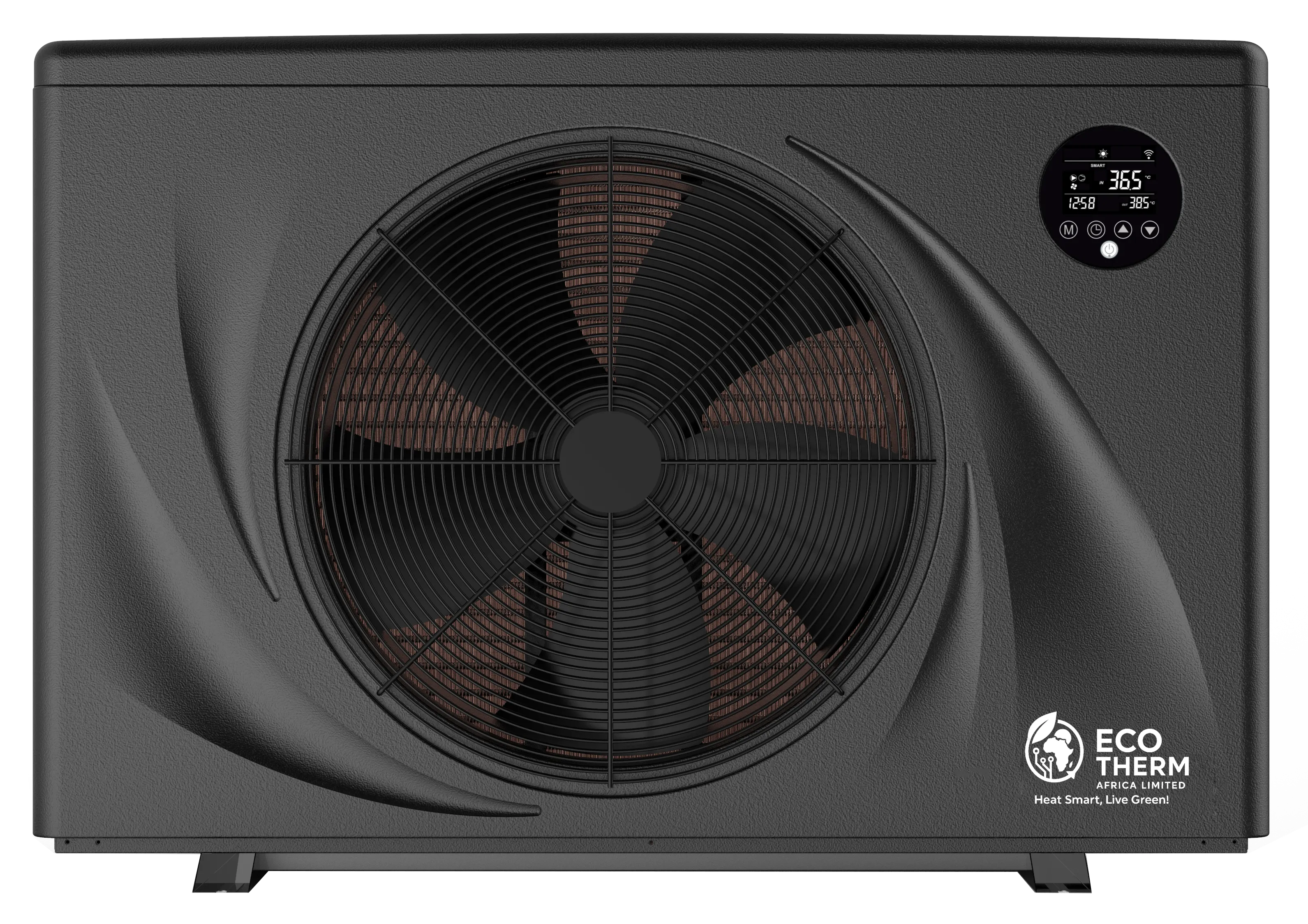

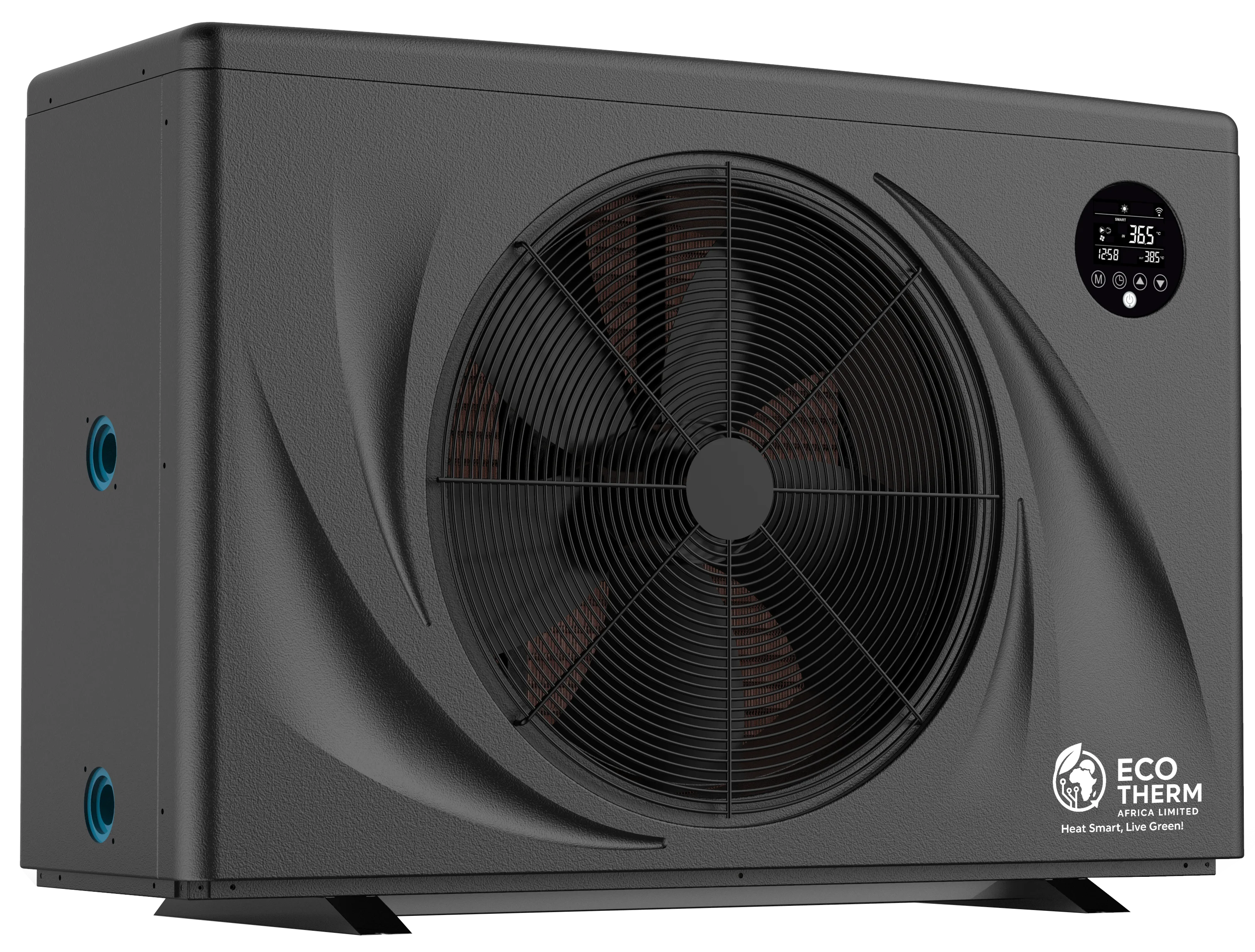

The R32 DC Inverter Quiet Pro — Residential Pool Series is engineered for residential swimming pools ranging from 15–130 m³. It utilizes R32 refrigerant and an inverter-driven compressor for outstanding COP and energy efficiency. Enjoy ultra-quiet operation alongside advanced remote monitoring and control through Wi-Fi and cloud connectivity.
Refrigerant: R32
Max water temp: 40°C (heating)
Energy saving: Up to COP 15.0
Noise (typical): Ultra-quiet: 40–43 dB(A)
Auxiliary heater: Optional auxiliary heater (depending on model)
Operating ambient: -7°C ~ 43°C
Representative Production
N/A
Summary Technical Specifications (representative)
| Model | Pool Volume (m³) | Power Supply | COP (typ) | Sound Pressure (dB) | Heating Range (°C) |
|---|---|---|---|---|---|
| PW010 | 15 m³ | 220–240V / 50Hz | 10.5 | 38 dB(A) | 9–40 |
| PW020 | 50 m³ | 220–240V / 50Hz | 11.0 | 42 dB(A) | 9–40 |
| PW040 | 90 m³ | 380V / 3-phase | 11.5 | 45 dB(A) | 9–40 |
| PW080 | 130 m³ | 380V / 3-phase | 12.0 | 51 dB(A) | 9–40 |
Note: Values are representative. Refer to the catalog PDF for exact model-level specifications.
Features & Highlights
- Ultra-quiet operation: 40–43 dB(A)
- High energy efficiency: COP up to 15.0
- Heating & cooling modes
- Intelligent defrost and cloud platform control
- ABS corrosion-resistant casing and spiral titanium heat exchanger
- Panasonic inverter compressor for reliable performance
