Applications
- Commercial pools (40–500 m³)
Overview

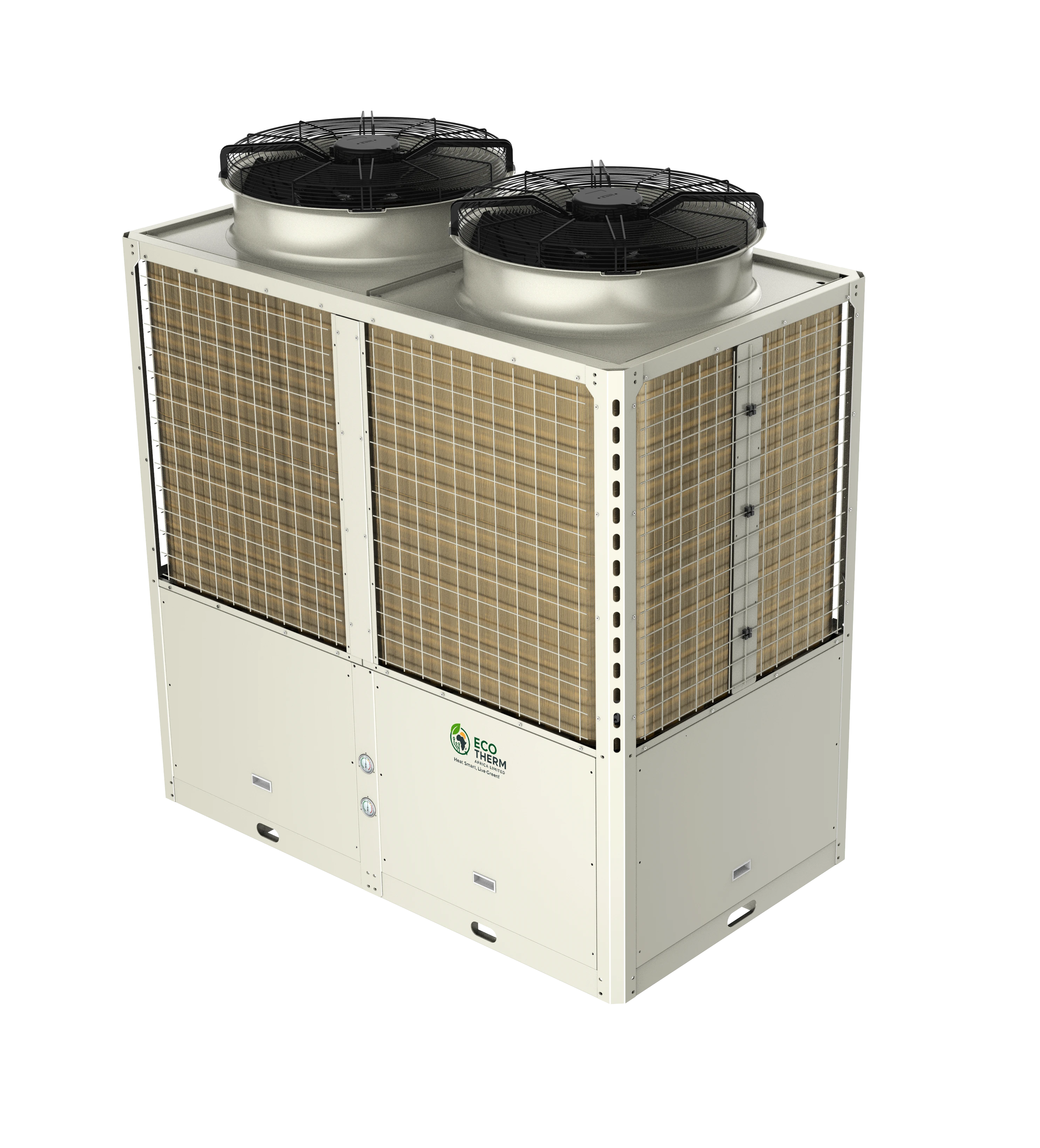

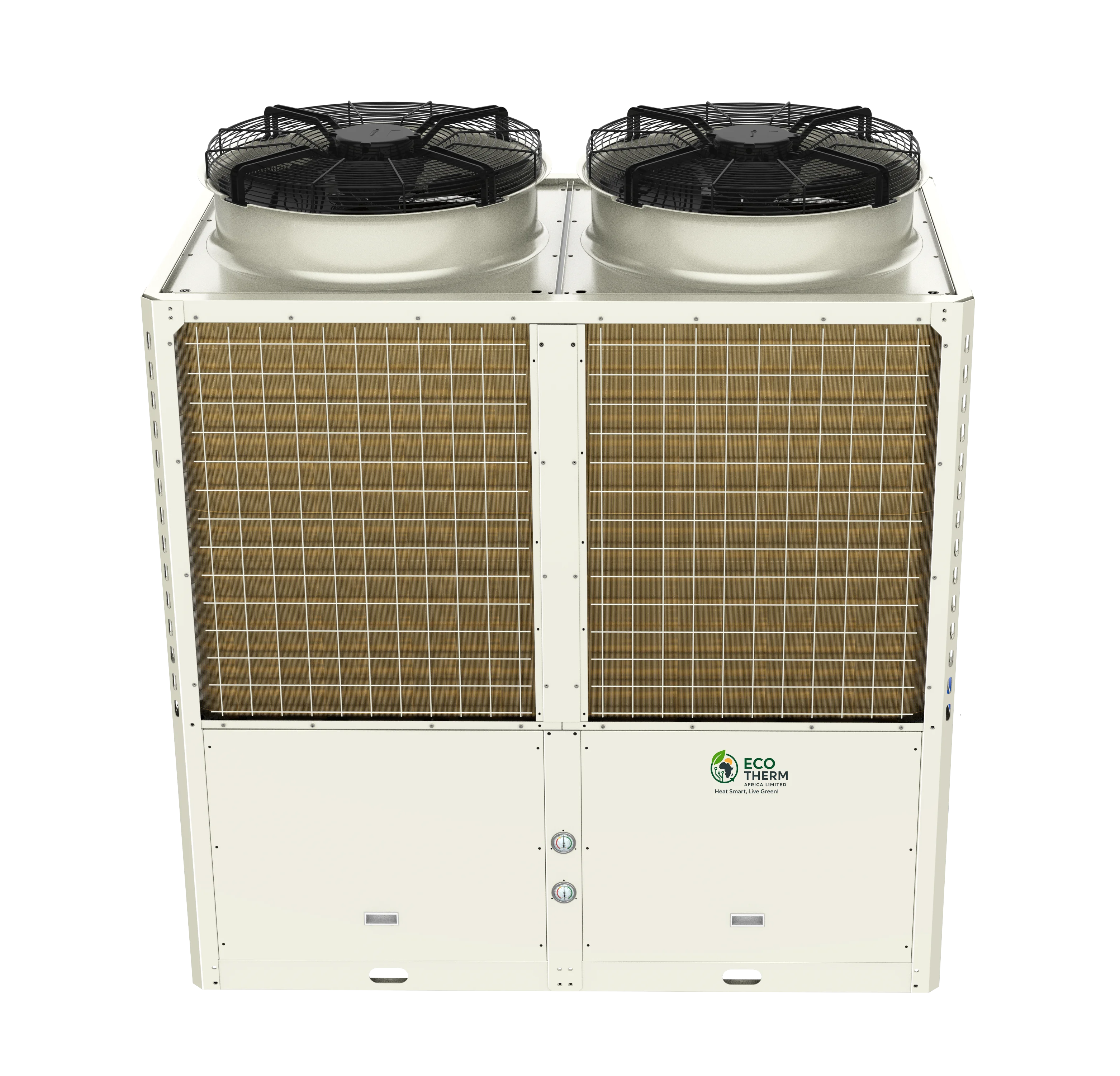

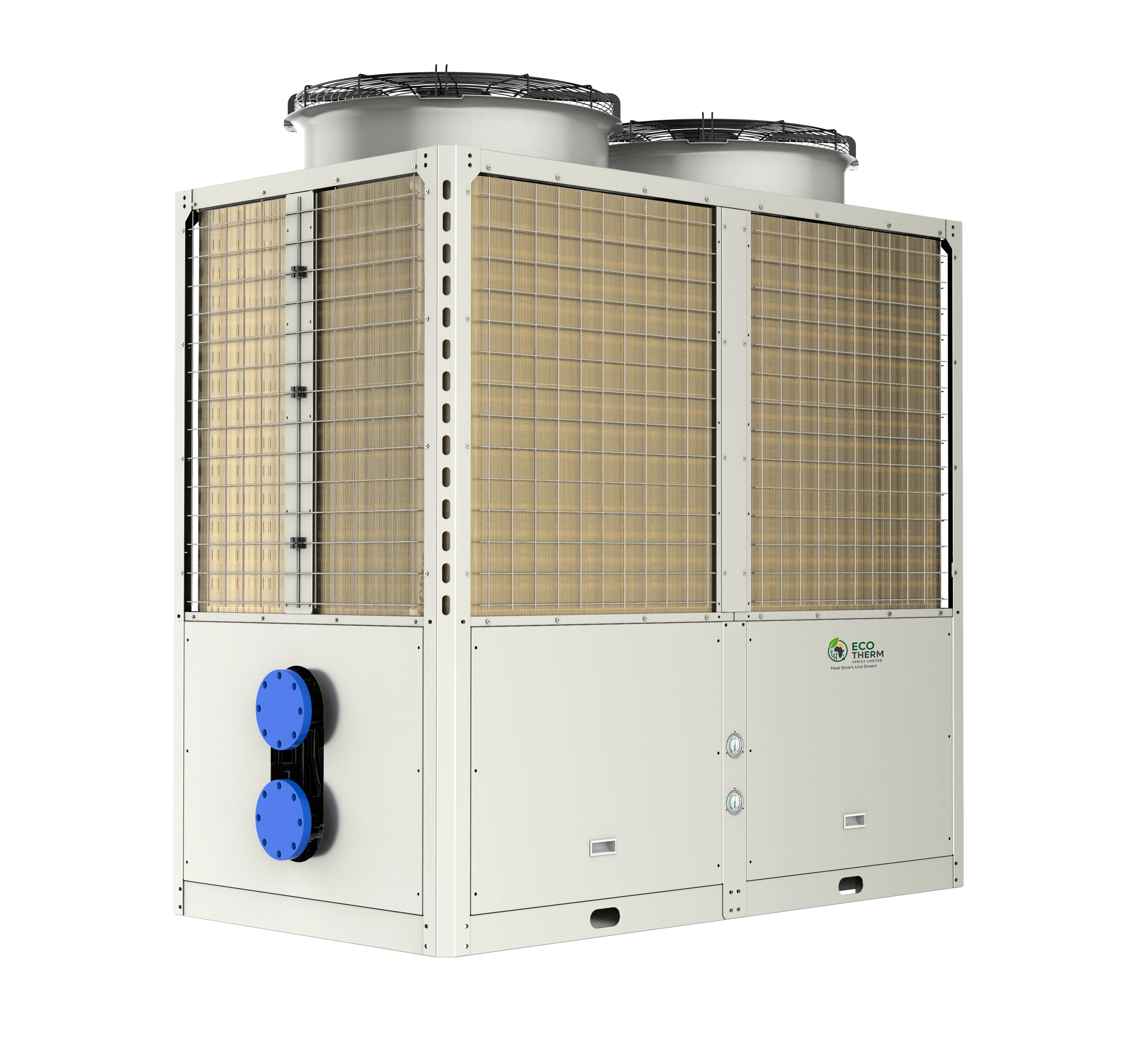

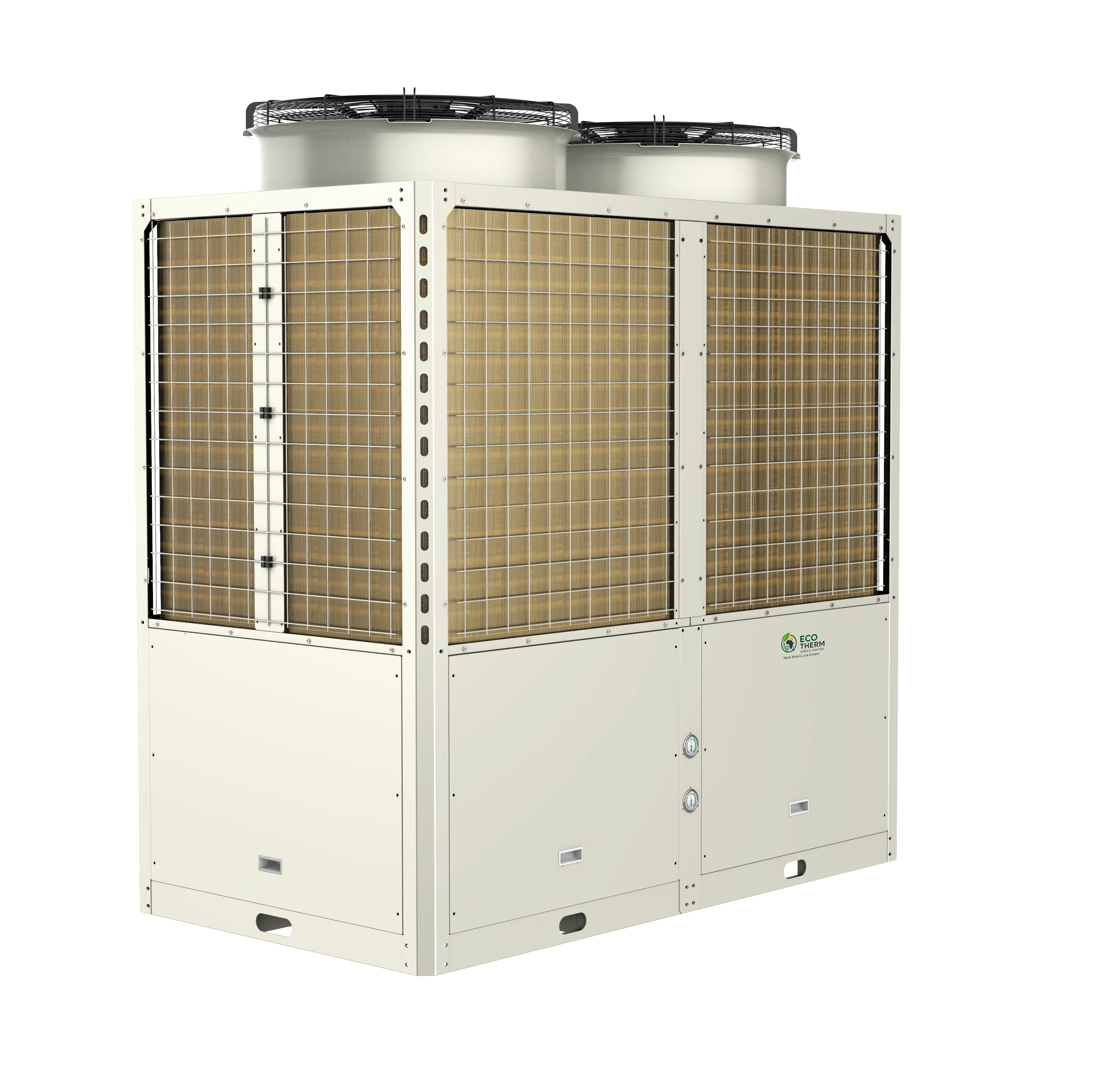

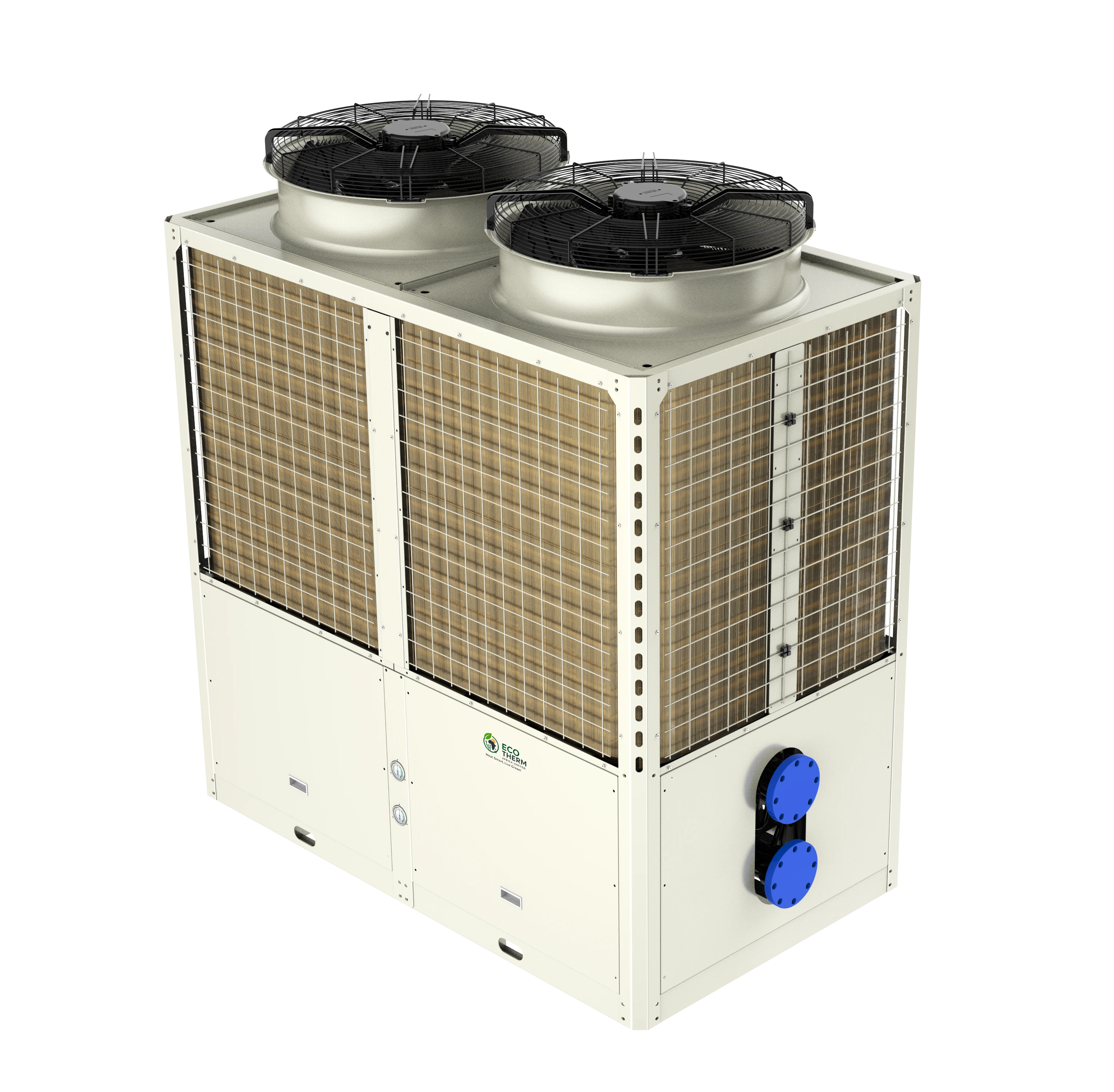

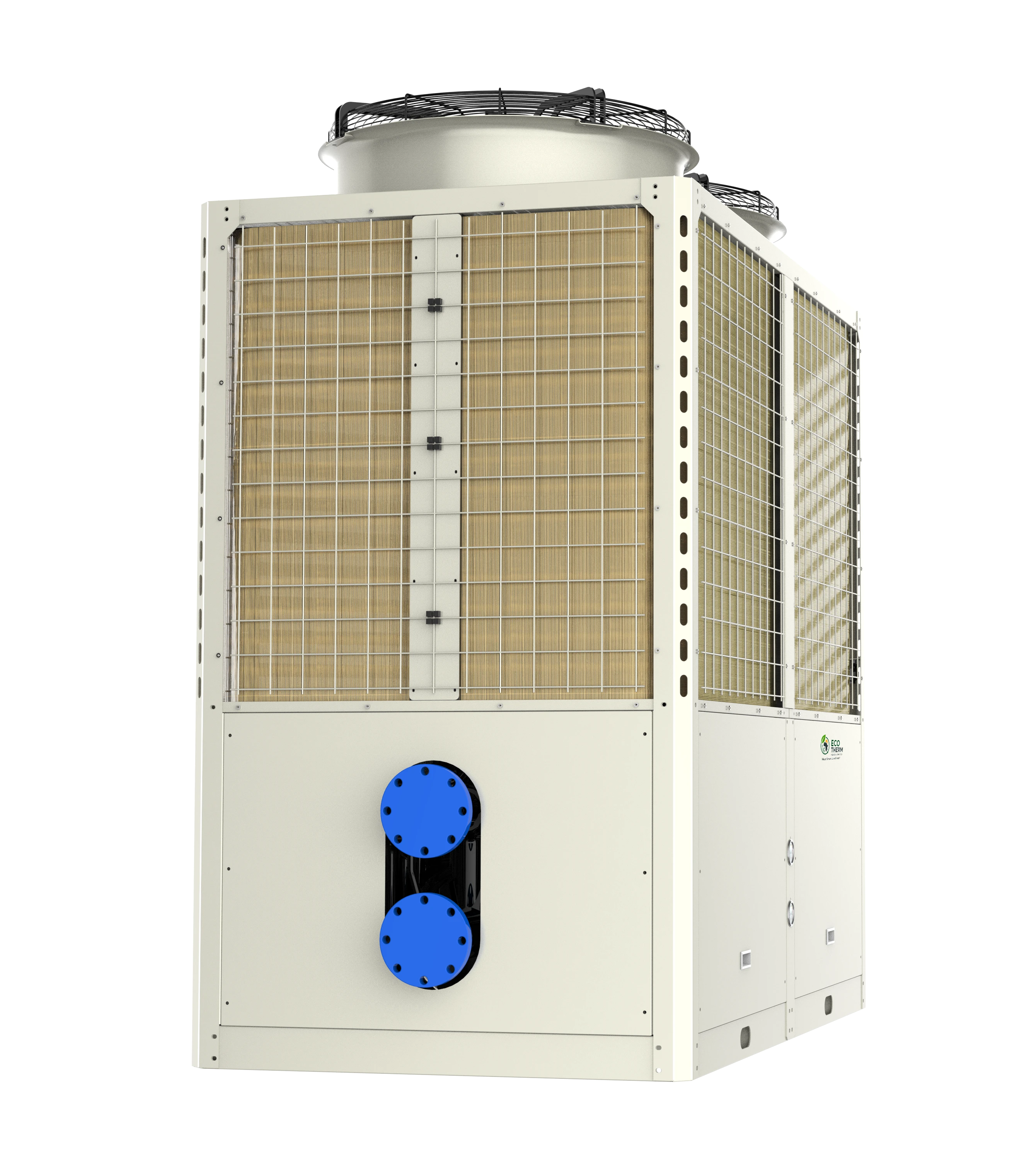

The R410A Commercial Pool Heat Pump delivers reliable heating and cooling for commercial pools. It features high-efficiency titanium heat exchangers, advanced noise reduction systems, and intelligent PID control. Capacities range from 26–145 kW with a COP of 4.6–6.2.
Refrigerant: R410A
Max water temp: 40°C (heating) / 35°C (cooling)
Energy saving: Up to 75%
Noise: 56–66 dB(A)
Built-in heater: Optional E-heater for peak loads
Operating ambient: -7°C ~ 43°C
Representative Production
See catalog for model capacities
Summary Technical Specifications (representative)
Representative values for Ecotherm R410A Commercial Pool models. For full performance tables, refer to the catalog PDF.
| Model | Pool Volume (m³) | Power Supply | COP (typ) | Sound Pressure (dB) | Heating Range (°C) |
|---|---|---|---|---|---|
| PW050 | 40 | 380V / 3-phase | 4.6 | 56 | 9–40 |
| PW150 | 150 | 380V / 3-phase | 5.5 | 62 | 9–40 |
| PW300 | 500 | 380V / 3-phase | 6.2 | 66 | 9–40 |
Note: Values are representative. Refer to the catalog PDF for exact model-level specifications.
Features & Highlights
- High-efficiency titanium tube-in-shell heat exchanger
- Intelligent PID control and intelligent defrost
- Low-noise fan and compressor design
- Optional auxiliary E-heater for peak heating demand
- Suitable for commercial pools 40–500 m³
- R410A refrigerant, low maintenance, long lifespan
