Applications
- Residential (homes, apartments)
- Light commercial (offices, guesthouses)
Overview

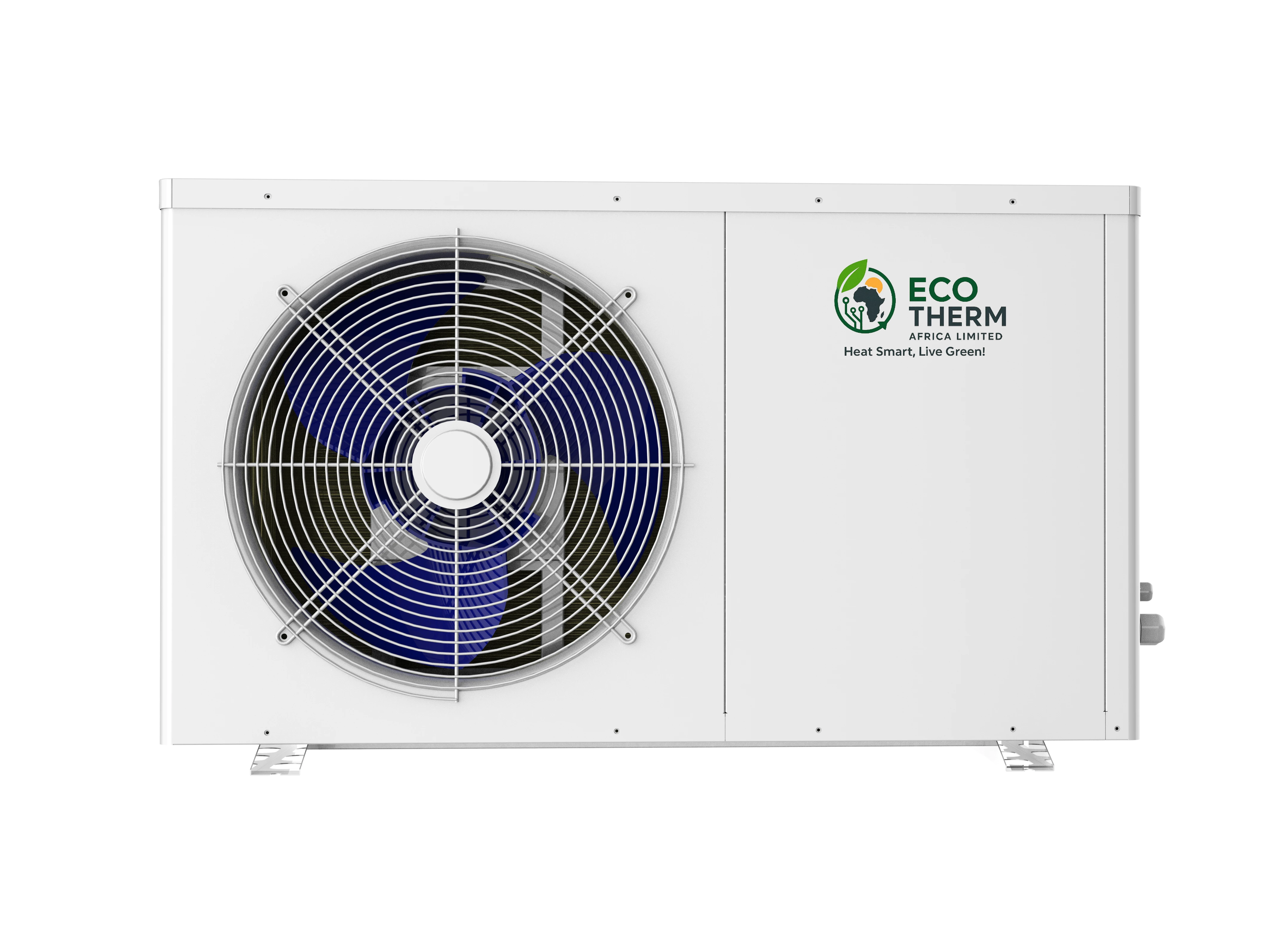

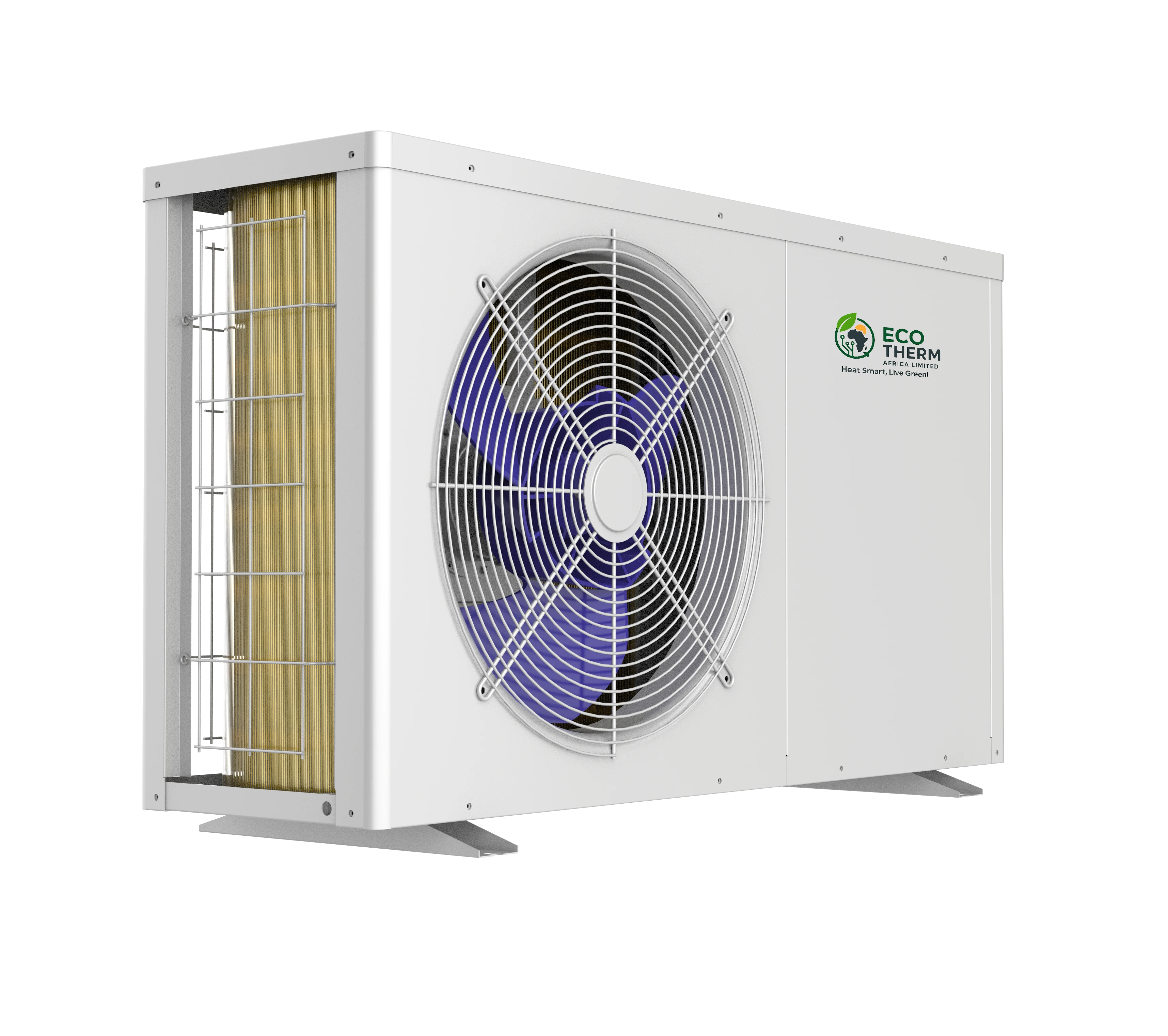

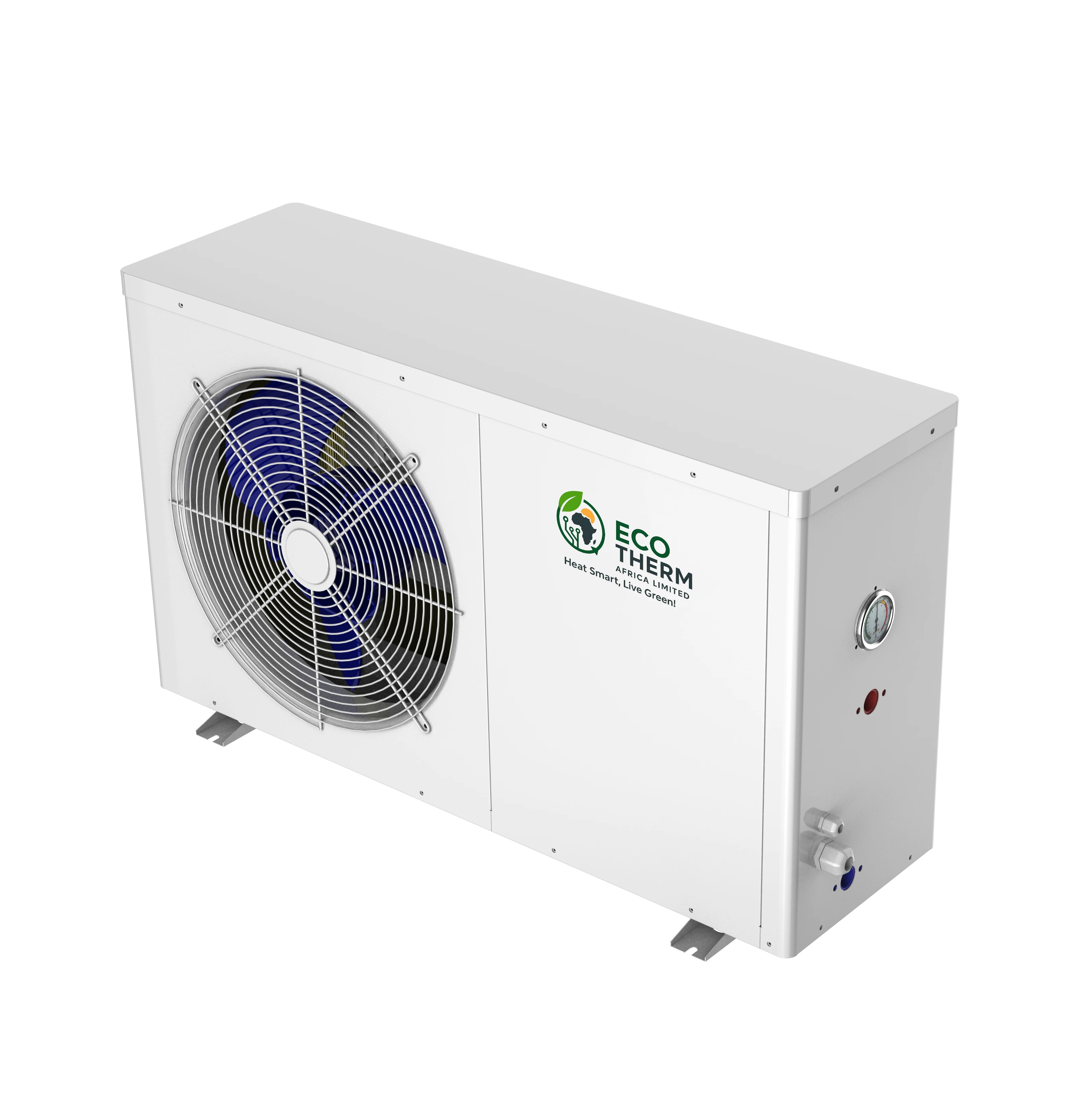

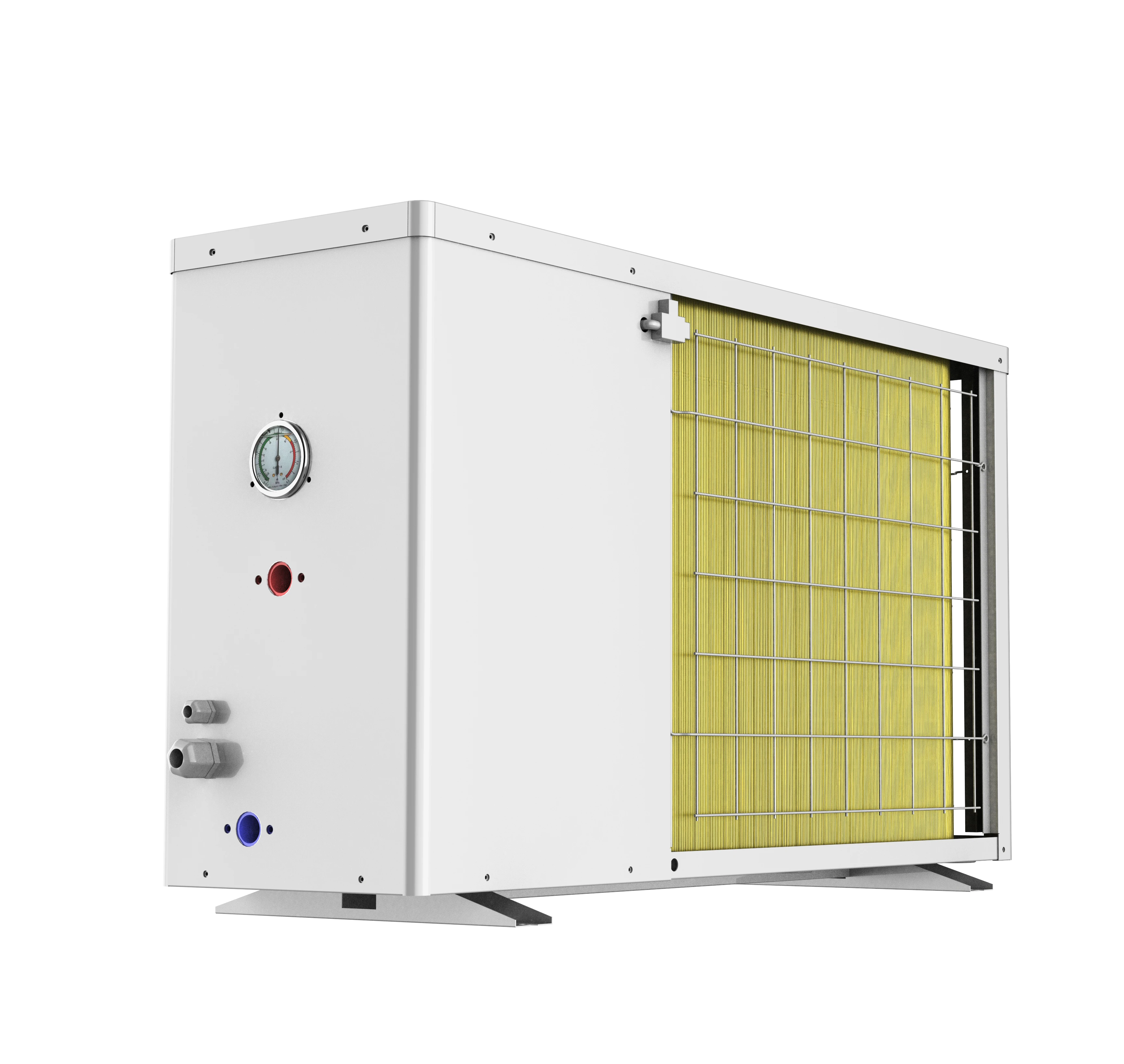

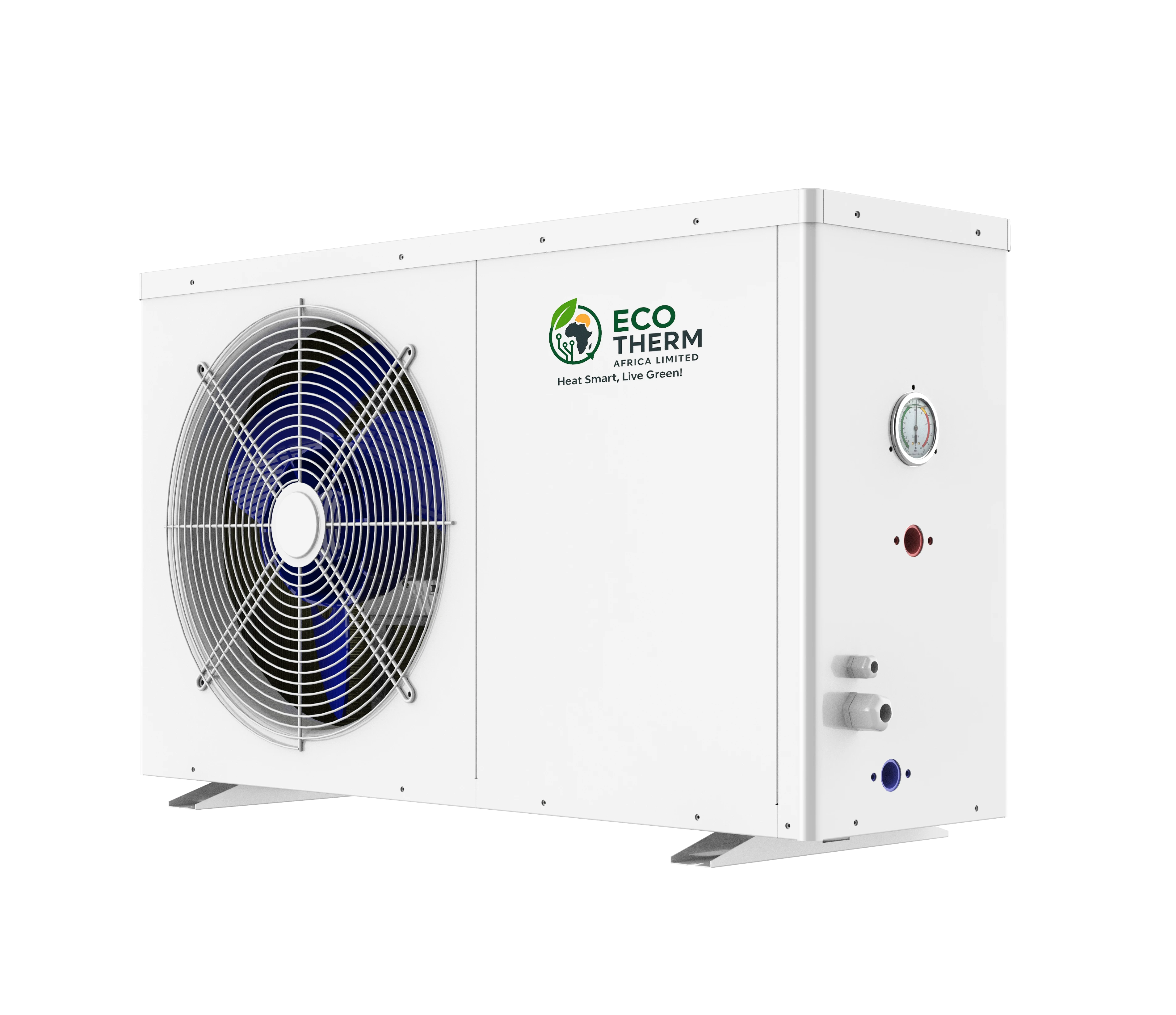

The R410A Residential Hot Water Heat Pump provides both heating and cooling capabilities. Equipped with a smart touchscreen controller and high-efficiency tube-in-shell heat exchanger with built-in Wilo pump. Max water temperature: 60°C, reliable operation from –7°C to 43°C.
Refrigerant: R410A
Max water temp: 60°C
Energy saving: High efficiency (A+++ 35/55°C)
Noise (typical): 48–75 dB(A)
Built-in heater: Optional E-heater controlled via smart controller
Operating ambient: -7°C ~ 43°C
Tank Sizes
75 L · 107 L · 150 L · 206 L
Summary Technical Specifications (representative)
Representative values for R410A Residential models. For full model-level tables, refer to the catalog PDF.
| Model | Capacity (kW) | Input Power (kW) | COP | Production (L/h) |
|---|---|---|---|---|
| PW010 | 3.5 | 0.96 | 3.65 | 75 |
| PW015 | 5.0 | 1.30 | 3.86 | 107 |
| PW020 | 7.0 | 1.79 | 3.92 | 150 |
| PW030 | 9.6 | 2.42 | 3.96 | 206 |
Features & Highlights
- Supports heating and cooling
- Clear LCD or touchscreen controller
- Target temperature setting, timer & scheduling
- E-heater control, intelligent defrost, fault diagnostics
- High-efficiency tube-in-shell heat exchanger
- Built-in Wilo circulation pump
- Easy installation and clear operation
- Ambient: –7°C ~ 43°C, Max water 60°C
- IPX4 and Class I safety protection
